Brian Sunter

Bevy Agent

A Bevy plugin for driving a game as a deterministic simulation that an AI agent can step, inspect, snapshot, restore, replay, and branch.

View Source
project Rust Bevy Bevy Plugin ECS Reinforcement Learning Agents Simulation

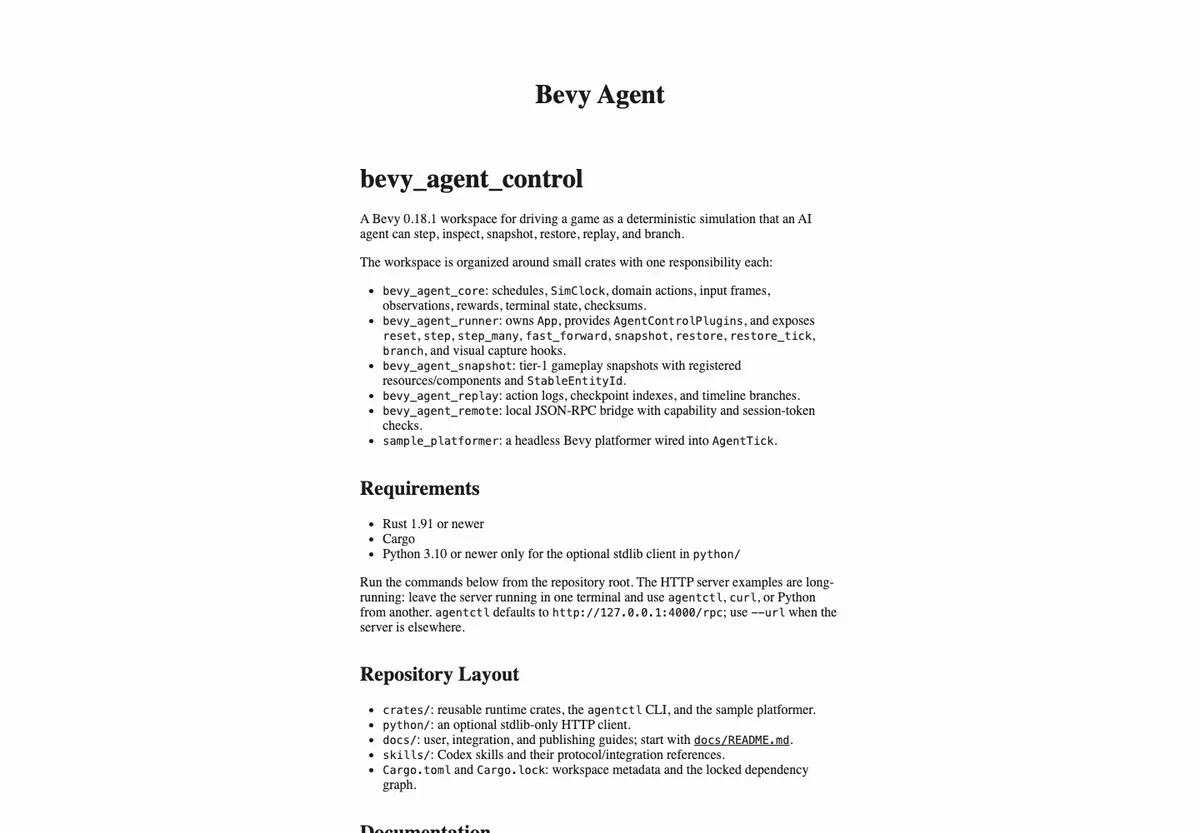

Cover image for Bevy Agent

Overview

Bevy Agent is a Bevy plugin that turns a game into a deterministic simulation an external agent can drive tick-by-tick. Drop it into your App, register your gameplay state, and the plugin exposes reset, step, snapshot, restore, and branch over an in-process API, stdio JSON-RPC, HTTP, or WebSocket.

I built it to make Bevy games usable as RL environments and as reproducible test harnesses, without leaving the regular Bevy plugin and ECS model.

Bevy Agent architecture diagram
Bevy Agent architecture diagram

Features

  • Deterministic stepping via SimClock + a dedicated AgentTick schedule
  • Tier-1 snapshots of every registered resource and component, keyed by StableEntityId
  • Action logs, checkpoint indexes, and timeline branches for replay and what-if exploration
  • Optional headless PNG capture with tick/frame/size metadata
  • JSON-RPC over in-process, stdio, HTTP POST /rpc, or WebSocket
  • Rust API, an agentctl HTTP CLI, and a stdlib-only Python client

Crates

  • bevy_agent_core: schedules, SimClock, domain actions, input frames, observations, rewards, terminal state, checksums
  • bevy_agent_runner: owns the App, exposes the control API and visual capture hooks
  • bevy_agent_snapshot: snapshots of registered resources and components with stable entity IDs
  • bevy_agent_replay: action logs, checkpoint indexes, timeline branches
  • bevy_agent_remote: JSON-RPC bridge with capability and session-token checks
  • sample_platformer: a headless reference game wired end-to-end into AgentTick

Quick Start

rust
use bevy_agent_core::AgentAction;
use bevy_agent_runner::{AgentApp, ResetOptions};

let mut env = AgentApp::new(sample_platformer::build_headless_app);
let obs0 = env.reset(ResetOptions::default())?;
let step1 = env.step(AgentAction::Move { x: 1.0, y: 0.0 })?;
let snapshot = env.snapshot()?;
env.step(AgentAction::Jump)?;
env.restore(snapshot.snapshot_id)?;
let alternate = env.step(AgentAction::Noop)?;

Drive it from Python over HTTP:

python
from bevy_agent_client import AgentClient

env = AgentClient("http://127.0.0.1:4000/rpc")
obs = env.reset(seed=42)
step = env.step({"type": "Move", "x": 1.0, "y": 0.0})
snapshot = env.snapshot()
env.restore(snapshot["snapshot_id"])

Determinism Contract

Gameplay systems that want replayable behavior should:

  • run in AgentTick, not the ordinary frame Update
  • read SimClock, not wall-clock Time
  • consume CurrentInputFrame<AgentAction>, not keyboard or mouse state directly
  • use StableEntityId for semantic entity identity
  • register all gameplay state with SnapshotAppExt
  • keep rendering and UI systems read-only with respect to authoritative state

Technology Stack

  • Rust 2024 edition, Bevy 0.18
  • Custom AgentTick schedule for deterministic stepping
  • JSON-RPC transports: in-process, stdio, HTTP, WebSocket
  • image crate for PNG capture
  • Python client built on the standard library, no extra deps
